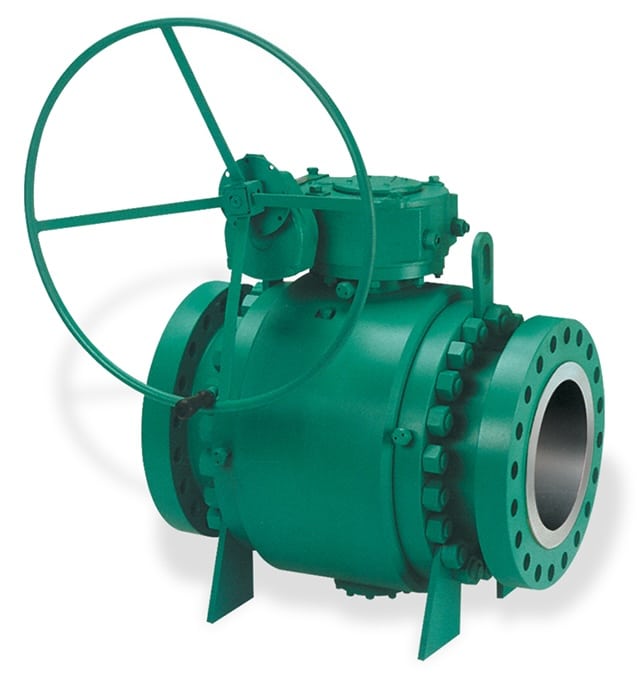

PBV Trunnion Mounted Ball Valves

FET’s PBV® trunnion-mounted ball valves provide dependable shutoff and durability for high-pressure oil and gas applications, featuring corrosion-resistant materials and easy serviceability.

FET’s PBV® trunnion-mounted ball valves deliver reliable tight shutoff and low torque performance, making them ideal for large, high-pressure oil and gas applications. Engineered to the highest standards, these valves feature a secondary emergency sealant injection system and are constructed from certified materials that resist corrosion and sulfide stress cracking.

Designed for durability and easy field service, they also offer a range of customizable options, including stem extensions, locking devices, and direct-mounted actuation.

Trunnion Mounted Ball Valves Specifications

Size Range: 2″ – 56″
Pressure Class: ASME 150 – 2500
API Standards: 6D
ASME B16.34

THREE-PIECE VALVE FEATURES

  • Sizes range: two to 56 inches
  • Pressure class: American National Standards Institute (ANSI) 150-2500
  • American Petroleum Institute (API) 6D design
  • Flanged ends, weld ends, flanged-X weld ends
  • Body material: carbon steel (dual-rated A105/LF2)
  • Full or reduced port
  • National Association of Corrosion Engineers (NACE)/fire-safe design
  • Self-lubricating steel bearings

PBV Three-Piece Trunnion Valves Catalogue (PDF)
